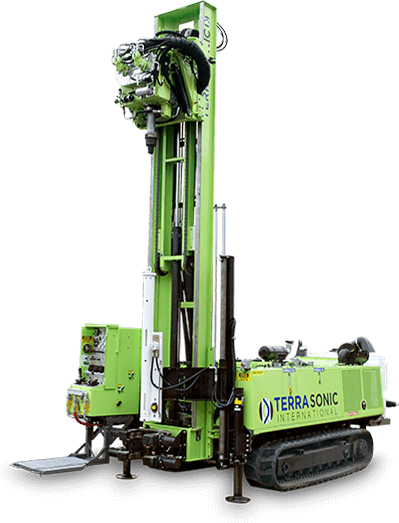

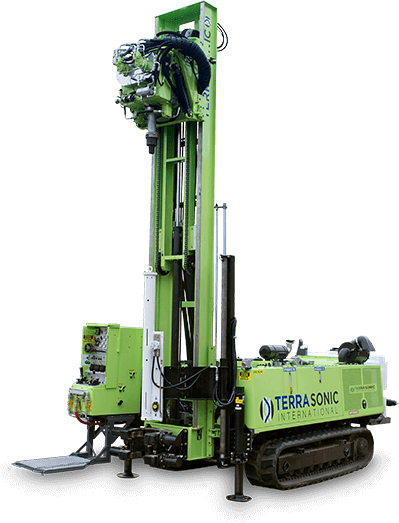

TSi 150CC |
 |
Platform |
| Compact Crawler Sonic Drill Rig |
| The most powerful sonic rig on a compact footprint affording remarkable flexibility and versatility. |
Sonic Head Model |
| TSi 150 Sonic Head Oscillator |
Transport Dimensions |
| 7’3" W x 21’4 L x 7’9" H (2.21m W x 6.5m L x 2.36m H) |
Rated Drilling Depth |
| Up to 1,000′ (304.8m)* |
Pull Back Force |
| 16,800 lbf (74.7 kN) |
Stroke |
| 14’2" (4.32m) |
Drilling Angle |
| Vertically to Nearly Horizontal |
| TSi 150CC Details |

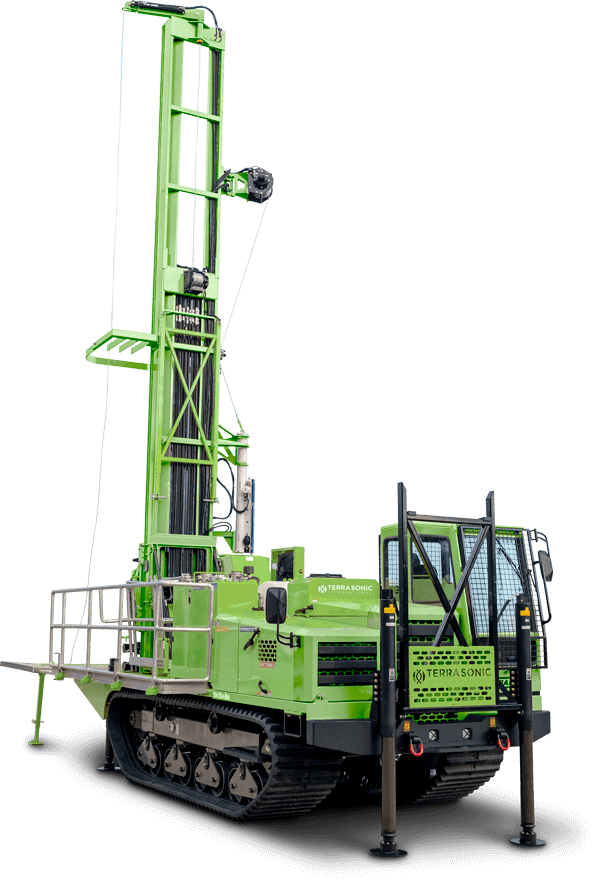

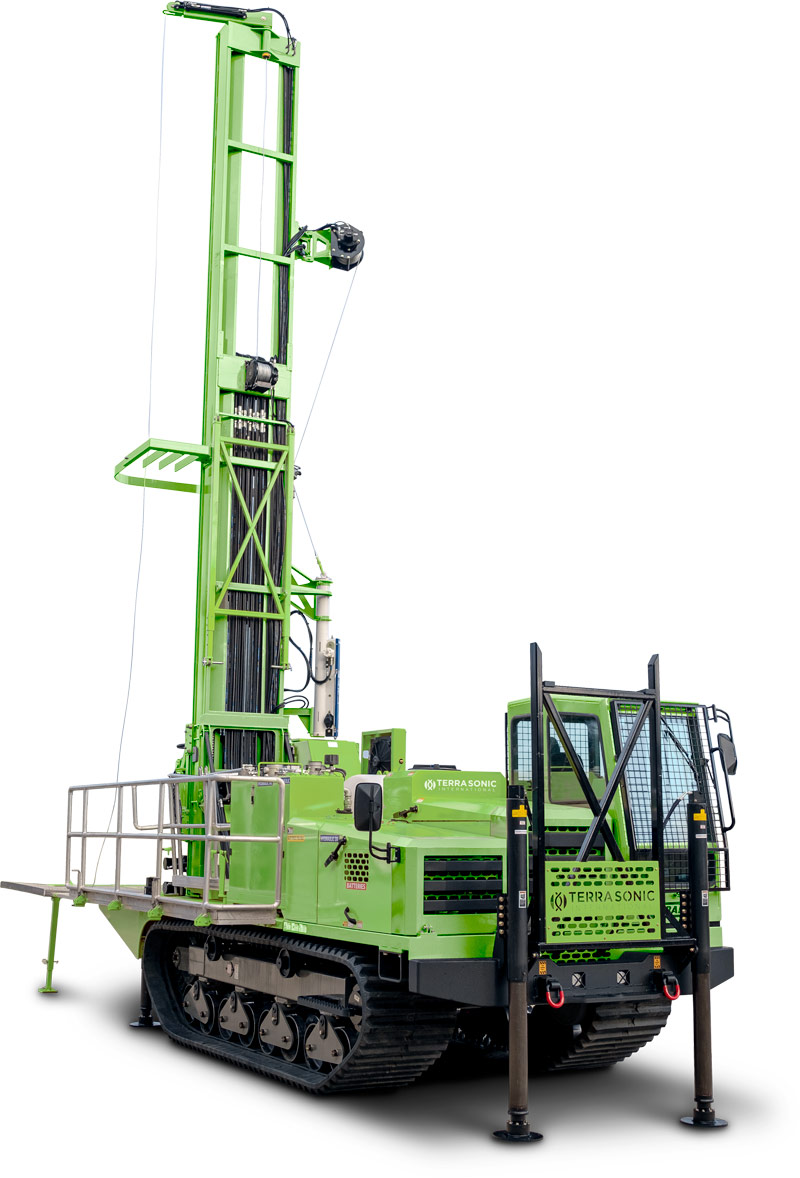

TSi 150C |
 |
Platform |
| Crawler-Mounted Sonic Drill Rig |
| Full-size sonic power and performance. |
Sonic Head Model |
| TSi 150 Sonic Head Oscillator |
Transport Dimensions |
| 8’6″ W x 33’11″ L x 11’5″ H (2.59m W x 10.3m L x 3.5m H) |
Rated Drilling Depth |
| Up to 1,000′ (304.8m)* |
Pull Back Force |
| 22,000 lbf (97.9 kN) |
Stroke |
| 24’5" (7.5m) |
Drilling Angle |
| 90° to 55° |
| TSi 150C Details |
TSi 150T |
 |
Platform |
| Truck-Mounted Sonic Drill Rig |
| Combines the industry-leading power of the TSi Sonic Head Oscillator with all the advantages of a full-size, truck-mounted configuration. |
Sonic Head Model |
| TSi 150 Sonic Head Oscillator |
Transport Dimensions |
| 8’6" W x 33’10" L x 12’4" H (2.59m W x 10.3m L x 3.8m H) |
Rated Drilling Depth |
| Up to 1,000′ (304.8m)* |
Pull Back Force |
| 22,000 lbf (97.9 kN) |
Stroke |
| 24’5" (7.5m) |
Drilling Angle |
| 90° to 55° |
| TSi 150T Details |

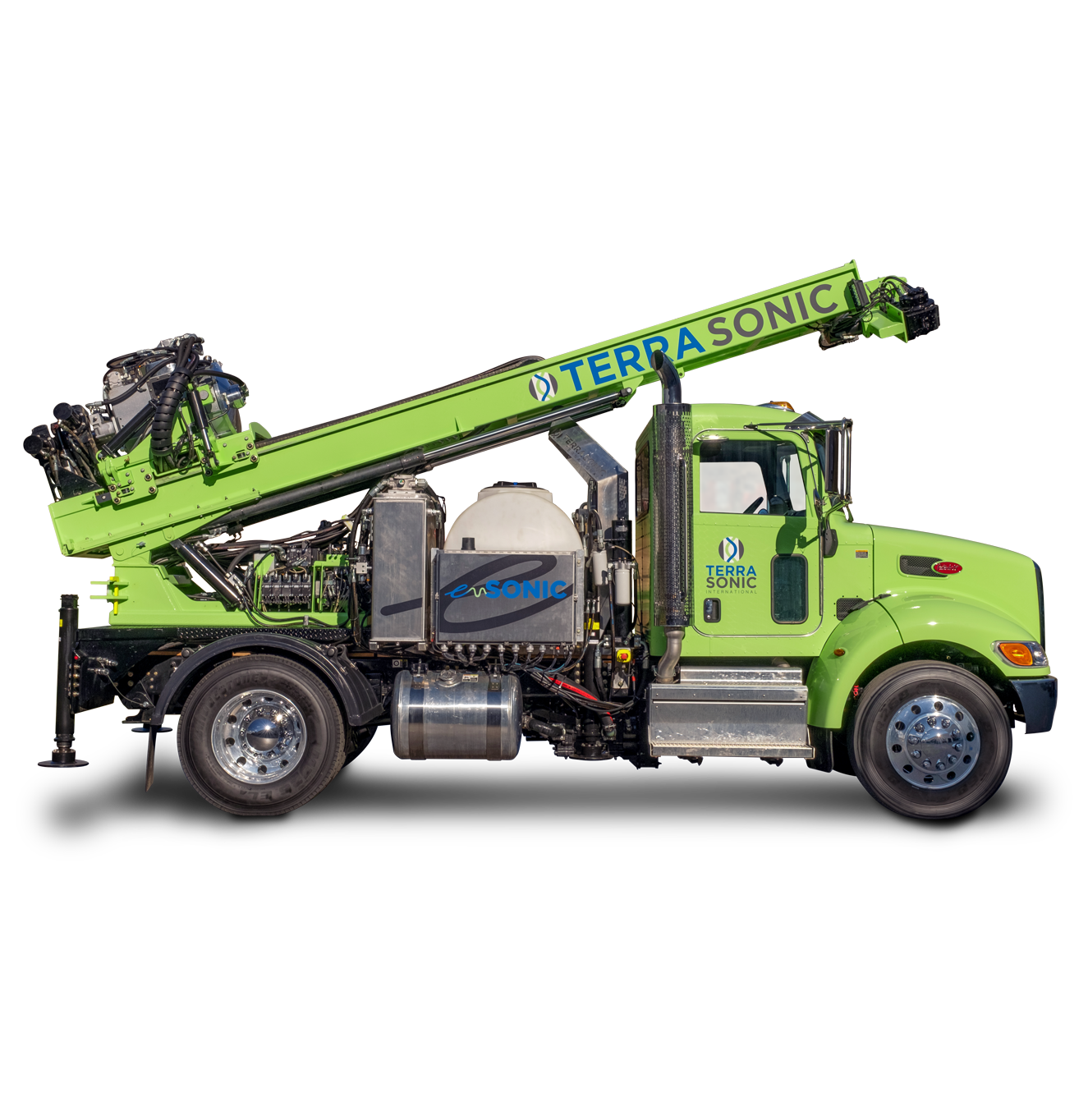

TSi 150CT |
 |
Platform |
| Compact Truck-Mounted Sonic Drill Rig |
| Delivers the most powerful sonic rig on mounted on a versatile truck that does not require a CDL license to drive. |
Sonic Head Model |
| TSi 150 Sonic Head Oscillator |
Transport Dimensions |
| 8’3" W x 23′ L x 13′ H (2.5m W x 7.0m L x 3.96m H) |
Rated Drilling Depth |
| Up to 1,000′ (304.8m)* |
Pull Back Force |
| 16,800 lbf (74.7 kN) |
Stroke |
| 14’2" (4.32m) |
Drilling Angle |
| Vertical to 45° off Vertical |
| TSi 150CT Details |

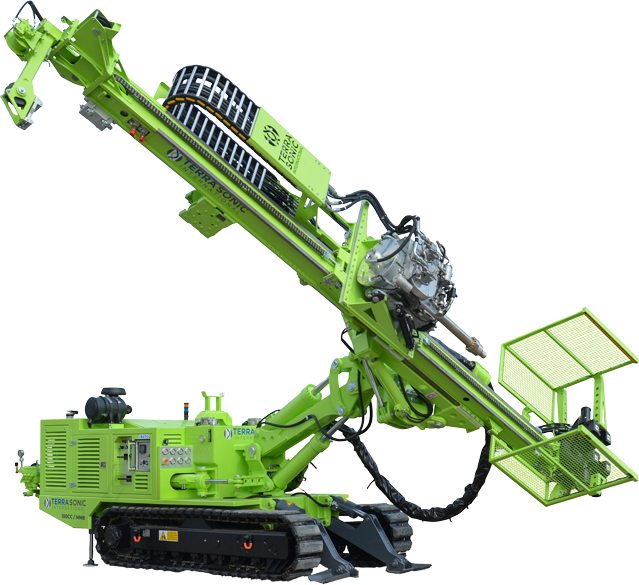

TSi 150AC8 |
 |
Platform |
| Articulating Crawler-Mounted Sonic Drill Rig |
| An exquisitely engineered combination of sonic drilling power and articulation all mounted on a rugged tracked crawler. |
Sonic Head Model |
| TSi 150 Sonic Head Oscillator |
Transport Dimensions |
| 2.17 m W x 8.65 m L x 3.47 m H (7’6" W x 28’5" L x 11’5" H) |
Rated Drilling Depth |
| Up to 300 m (1,000′)* |
Pull Back Force |
| 79.9 kN (17,958 lbf) |
Stroke |
| 4.4 m (14’5") |
Drilling Angle |
| Variable |
| TSi 150AC8 Details |

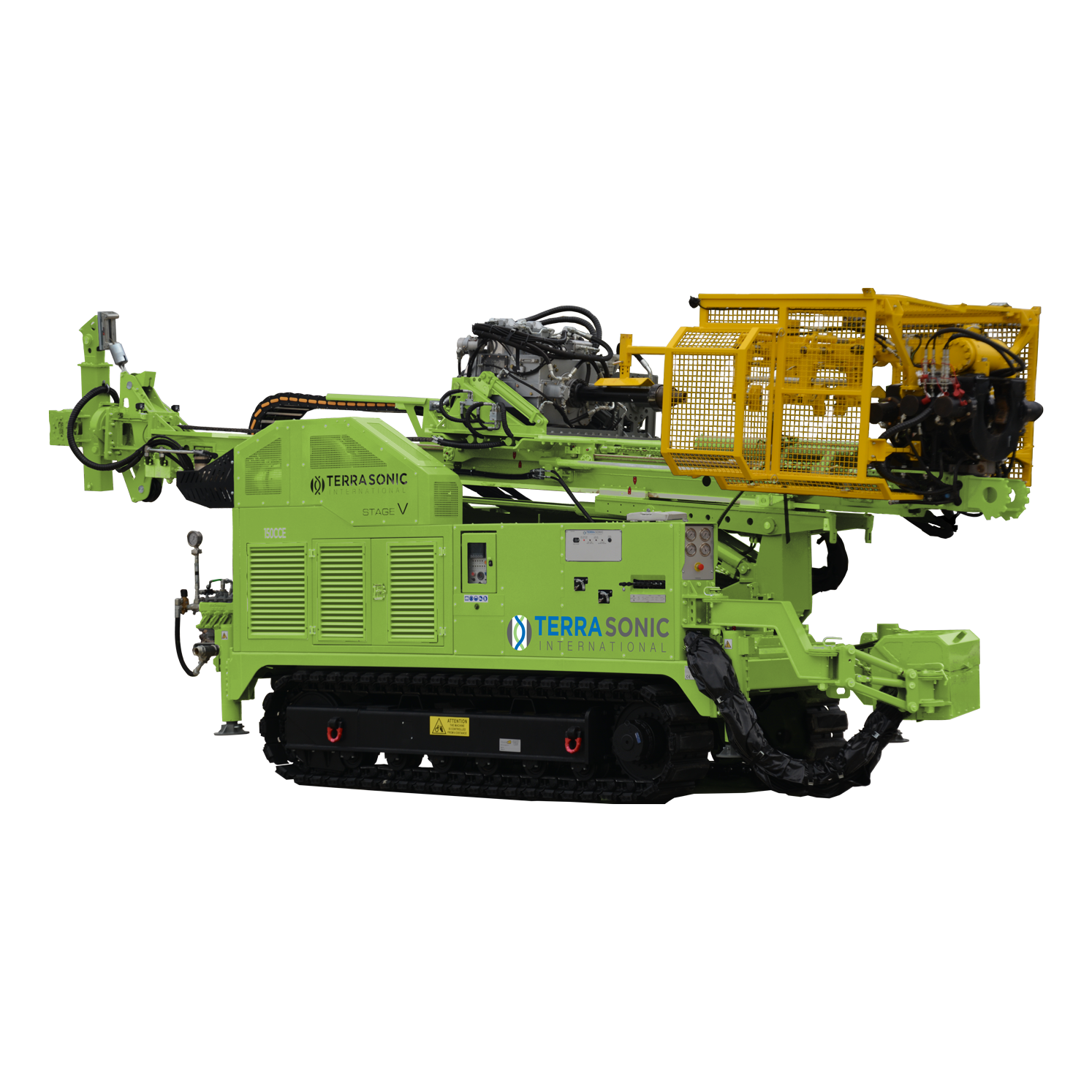

TSi 150CC-E |
 |
Platform |
| CE-Certified Compact Crawler Sonic Drill Rig |
| The CE-certified rig’s compact footprint, radio remote controlled tracking and track-mounted design make it perfect for accessing tight areas. |
Sonic Head Model |
| TSi 150 Sonic Head Oscillator |
Transport Dimensions |
| 2.00 m W x 8.73 m L x 3.30 m H (6’7" W x 28’8" L x 10’10") |
Rated Drilling Depth |
| Up to 300 m (1,000′)* |
Pull Back Force |
| 80 kN (17,985 lbf) |
Stroke |
| 4.40 m (14’5") |
Drilling Angle |
| 45° to 90° |
| TSi 150CC-E Details |
*Depending on Lithology and Casing Design
