TSi Sonic Rigs // TSi 150AC8

TSi 150AC8

Compact Crawler-Mounted Articulating Sonic Drill Rig

Full-size Sonic Power and Performance

Download Specification Sheet (.pdf)

At the base of every TSi 150AC8 Sonic Drill Rig is a remarkably durable Massenza MM8 platform engineered specifically to accommodate the TSi 150 Sonic Drill Head. An articulating mast allows drilling at a variety of angles, making it ideal for micropiles, anchors, geotechnical investigations and geothermal boreholes. The versatility of the articulating mast allows drilling at angles between vertical and 130 degrees in any directions. The proprietary TSi 150 Sonic Oscillator provides the world’s most productive use of Sonic power.

Key Applications

  • Geo-Construction
  • Dam and Levee investigations and rehabilitation
  • Earth Retention and Ground Improvement (e.g., micropiles, anchors)
  • Geotechnical studies
  • Mine Tailings Investigations

TSi 150AC8 Advantages

Ample Power A 245 HP Stage V diesel engine powers all driving, drilling and accessory hydraulic functions

True Sonic Power The exclusive TSi 150 Series Sonic Oscillator utilizes up to 150 HP to generate powerful resonant sonic energy in the drill string to a drilling depth of up to 1,000 ft.

Safer by Design The 150AC8 operational control panel can be tripod mounted or used remotely with the included padded shoulder sling assuring safe operating distance for the driller

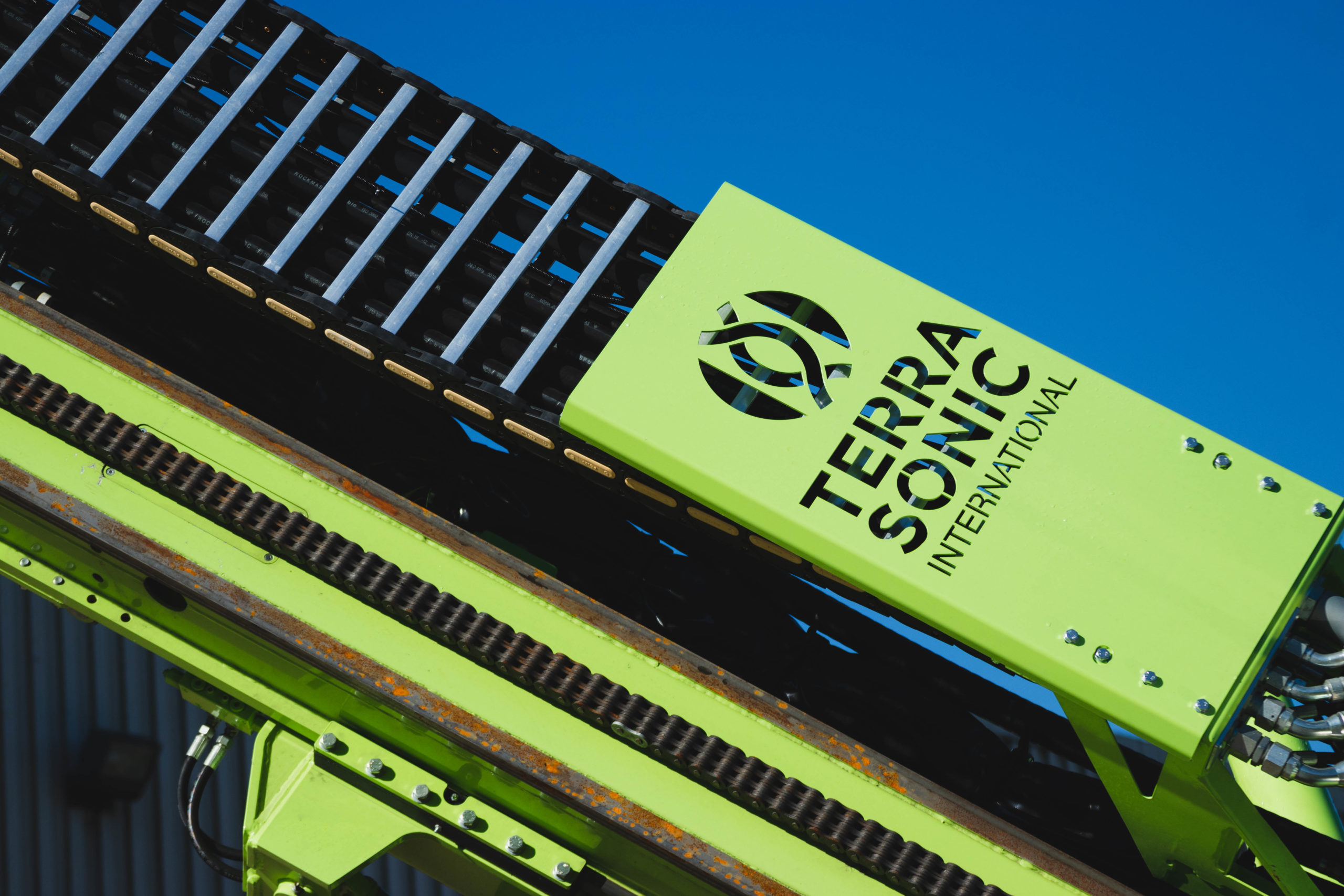

More Drilling Flexibility The 27′ 8″ mast with 14′ 5″ of head travel allows drilling angles anywhere between vertical and 130° in any direction

Efficient Design The drive system operates the feed frame with half the chain length and rollers of conventional drive methods

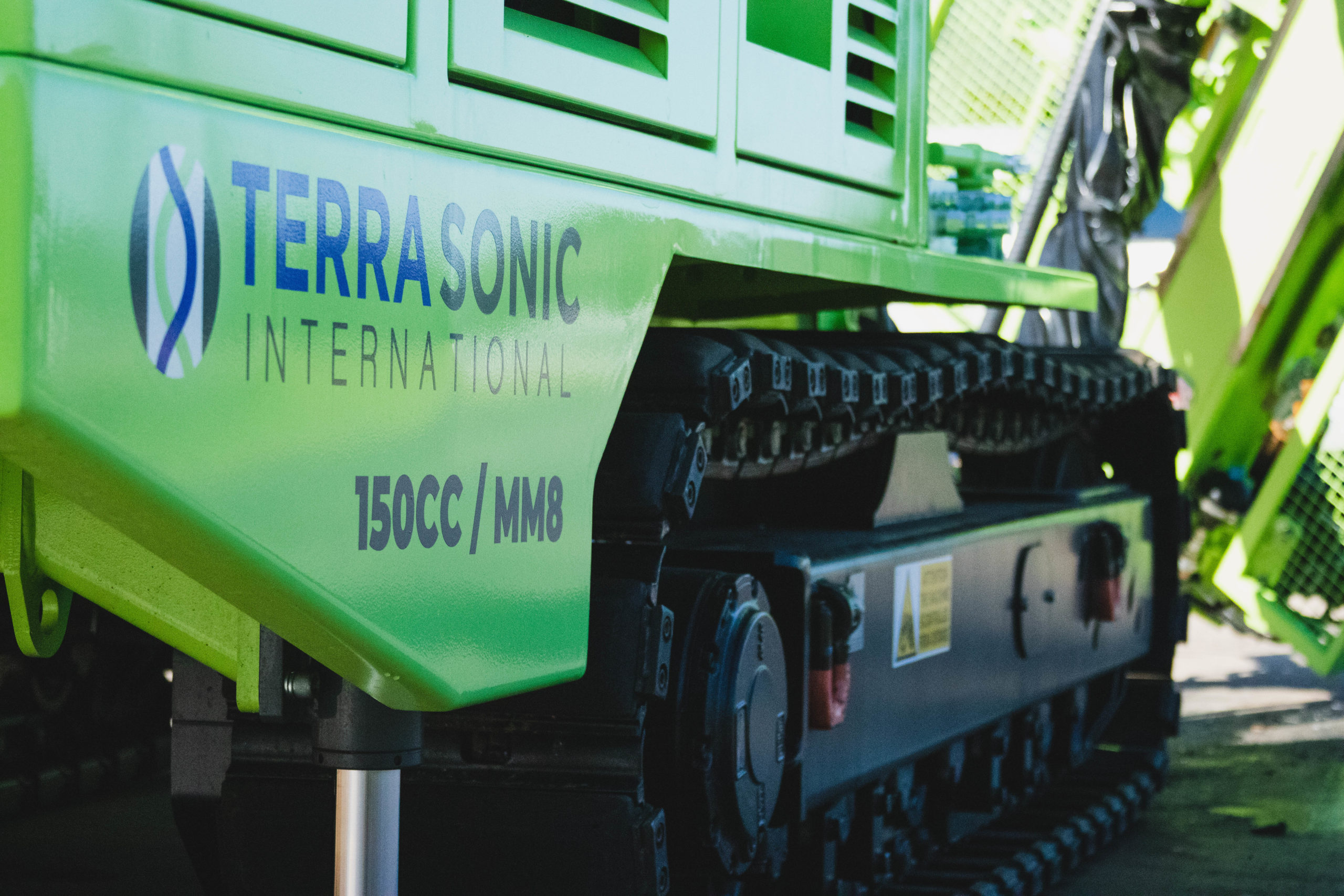

Extreme Capability The crawler-mounted design has full rotational drilling capability

Maximum Accessibility Rugged tracks allow the TSi 150AC8 to easily each drilling sites in virtually any type of terrain

Greater Drilling Efficiency Down force of 13,035 lbs. and pull back force of 17,958 lbs. maximizes drilling speed and efficiency

FMC Bean Pump A piston pump plumbed into the drilling system and water tank enables flushing of drill cuttings from borehole
