TSi Sonic Rigs // TSi 150T Truck // TSi Support Box Truck

TSi Support Box Truck

TSi Support Box Truck

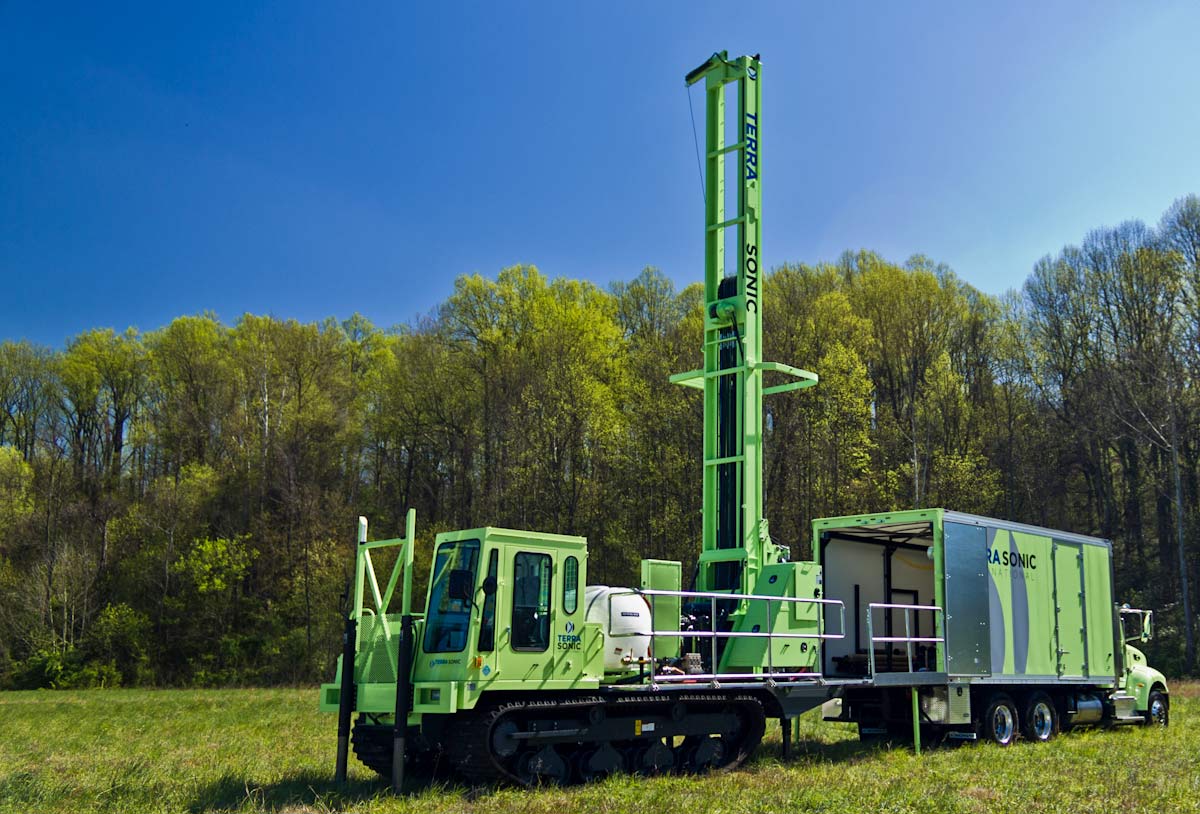

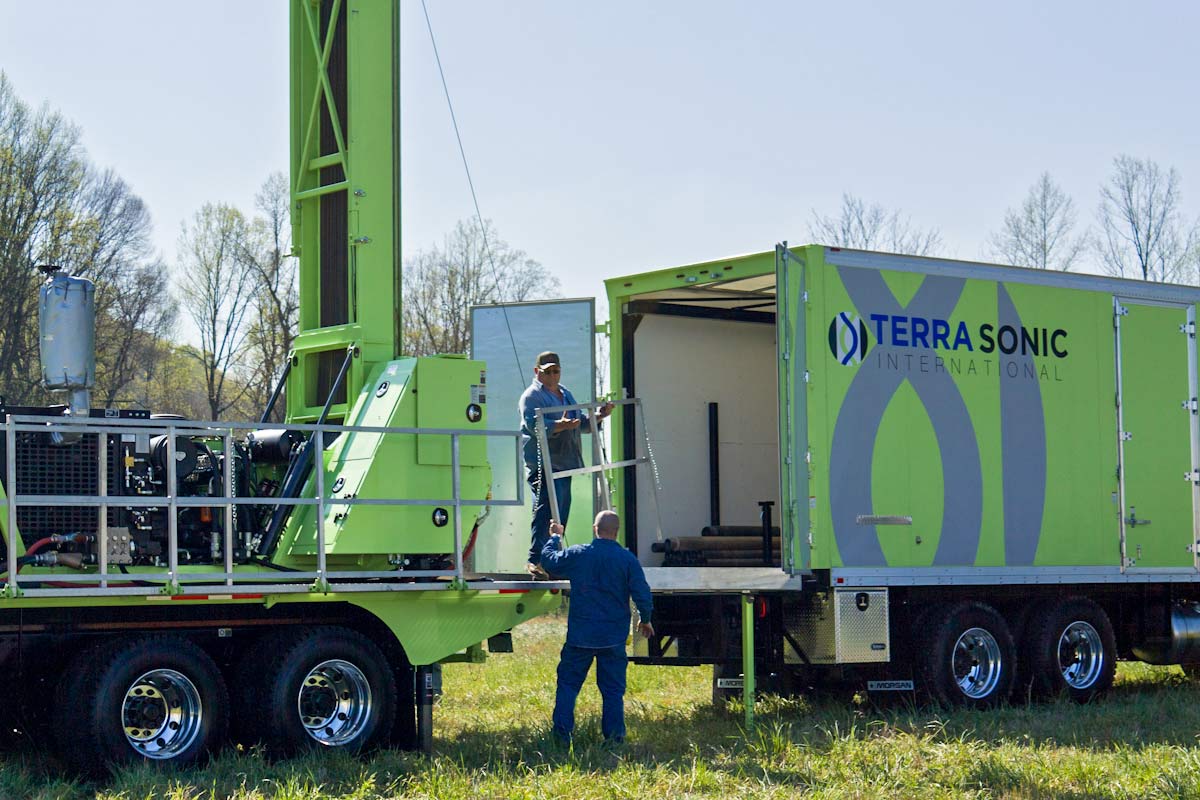

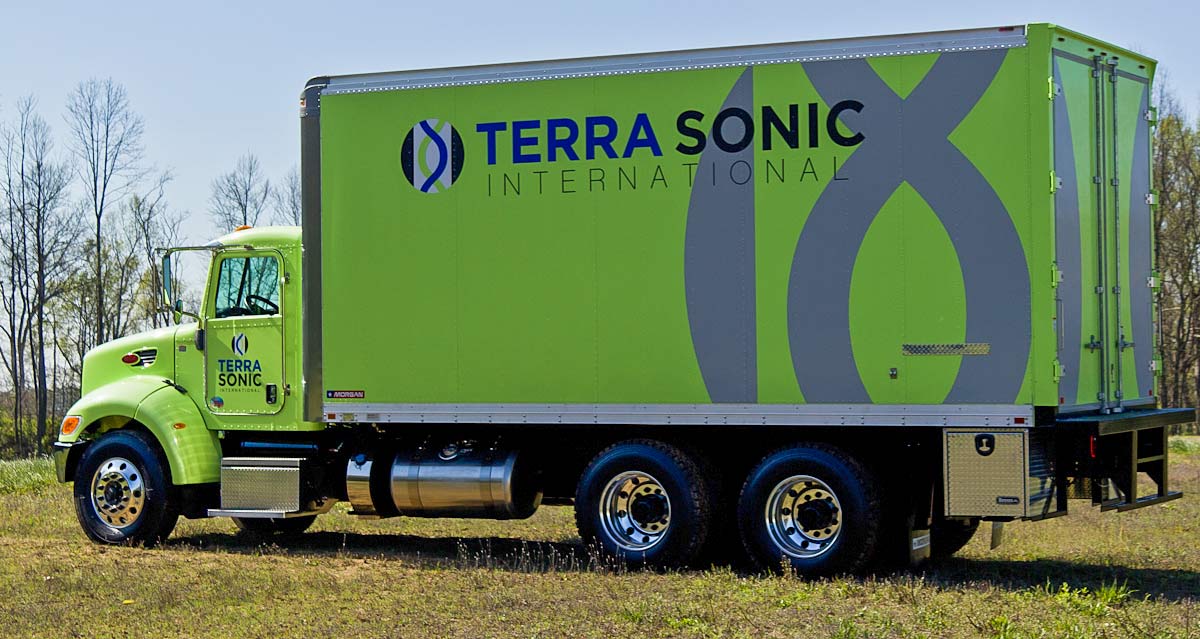

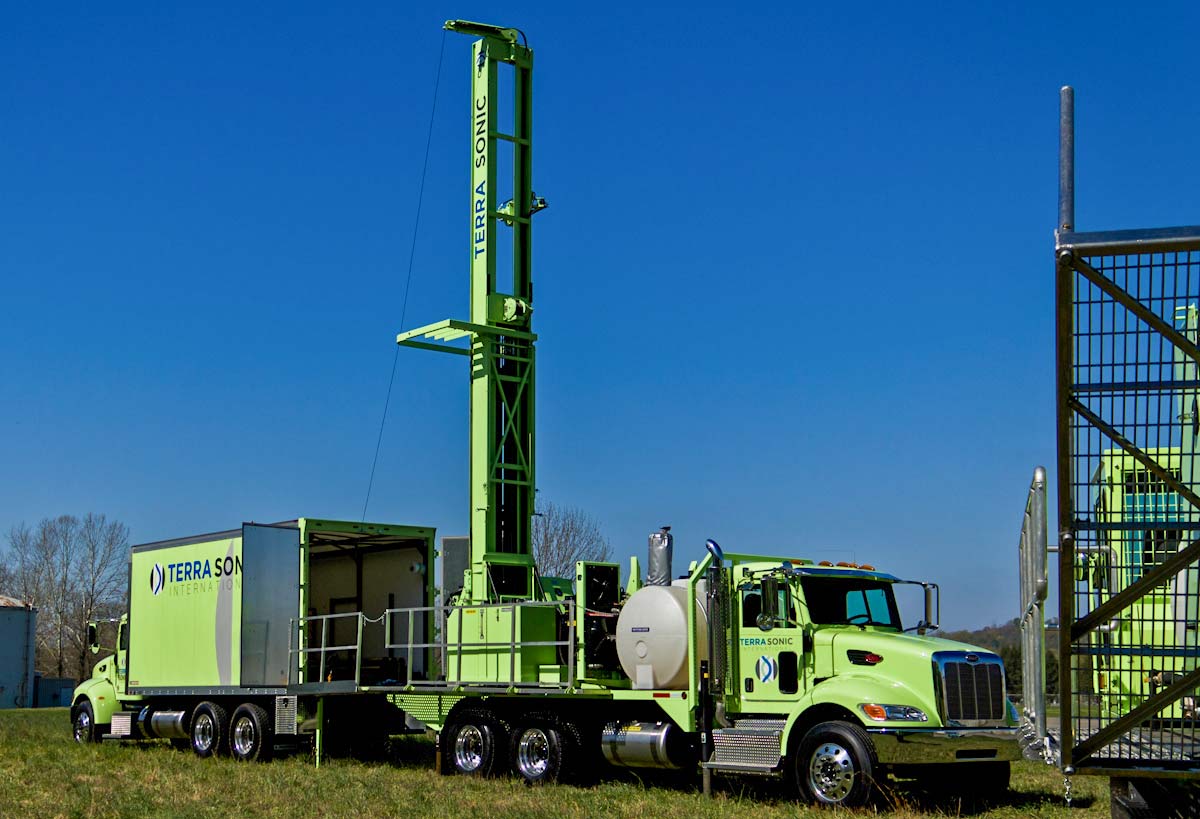

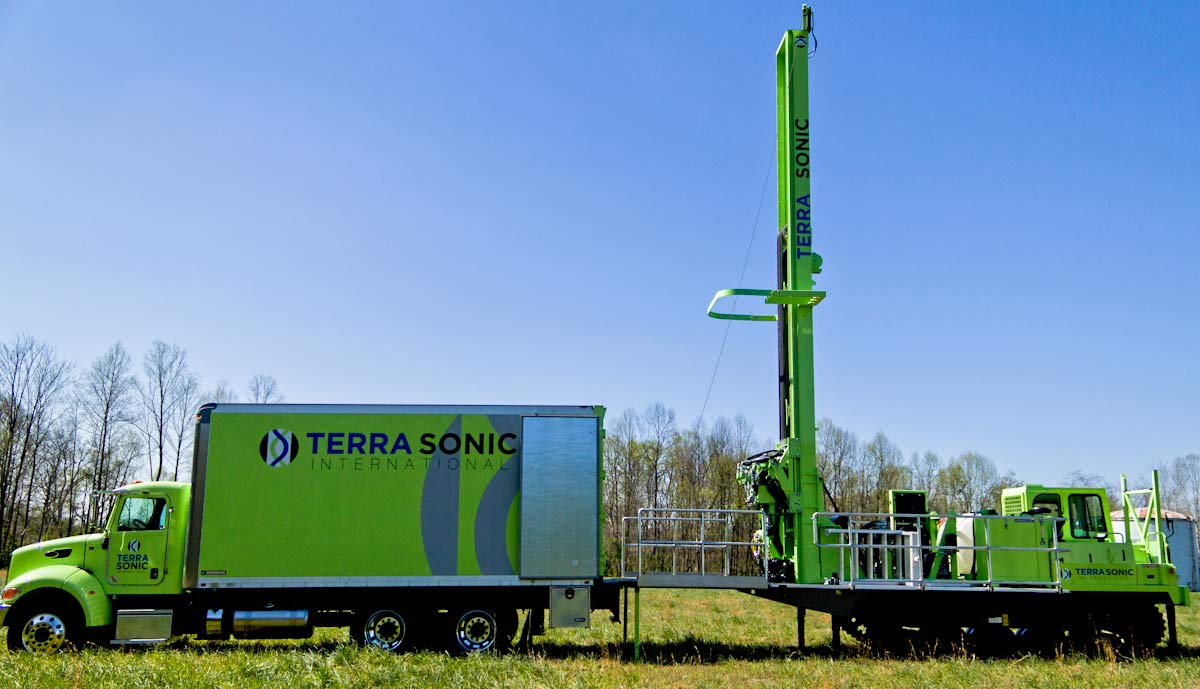

The Terra Sonic International Support Box Truck’s rear axle load is 40,000 lbs.; the chassis includes rear tow hitches. The Support Truck is stabilized and leveled at the jobsite by four hydraulically operated jack legs. The 20’ Van Body includes the following features to assist the drilling crew:

Van Body Features

  • Van body interior dimensions: 103” H x 98.13” W x 242.81” L
  • 1-1/8” laminated hardwood floor
  • Full Plymetal 2-panel Rear Door – 94”W x 97.25”H
  • Single Plymetal 40-11/16” x 96-1/4” side door
  • Bridge Crane – Steel Construction, 500 lb. capacity, one-handed operation air-powered hoist (26CFM, 90PSI)
  • Air supplied by pneumatic line connected to air tank on 150-D
  • Pipe racks custom designed to hold up to 66 of 3.5”x10.5’ rods on one side and 36 of 6” x 10’ casing on the other
  • 8’ steel work bench supplied with common hand tools
  • Power inverter for 120V receptacles at work bench
