Terra Sonic Universal Gantry (TUG) Pipe Handling System
For hoisted delivery and take-away of all sizes of Terra Sonic Tooling to and from the Sonic Head.
TUG Pipe Handling System for hoisted delivery and take-away of all sizes of Terra Sonic Tooling (rods, casing and core barrels) to and from the Sonic Head; includes removable rod and casing rack with adjustable divider and fork-channels (additional pipe racks sold separately), retractable hoisting system for transport, and trolley-mounted air hoist all mounted on a base with fork-channels and adjustable support pads.
Patent Pending

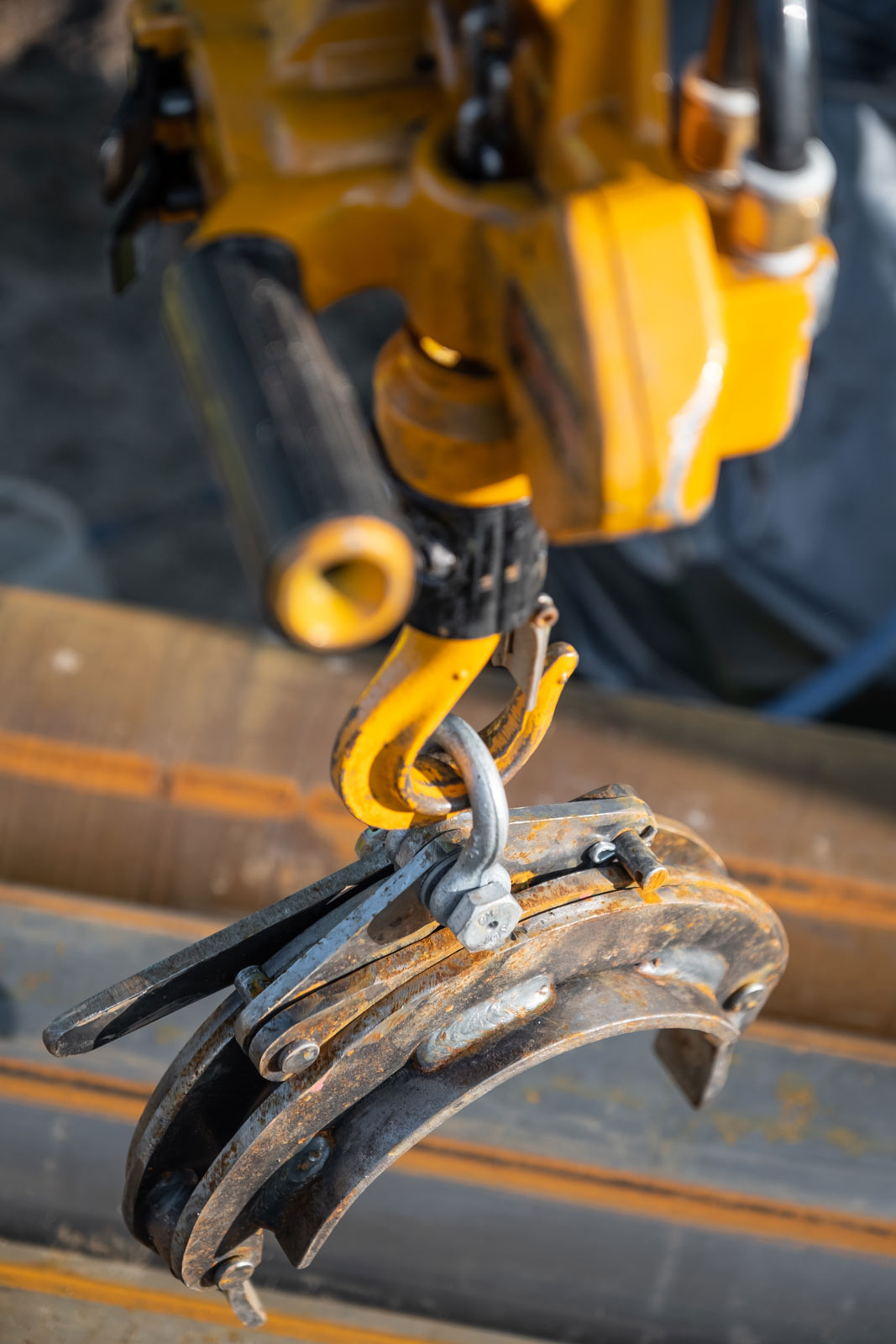

![claw of sonic drilling pipe handling system](https://www.terrasonicinternational.com/wp-content/uploads/2020/06/TSi-Tug-Pipe-Handling-01-683x1024.jpg)

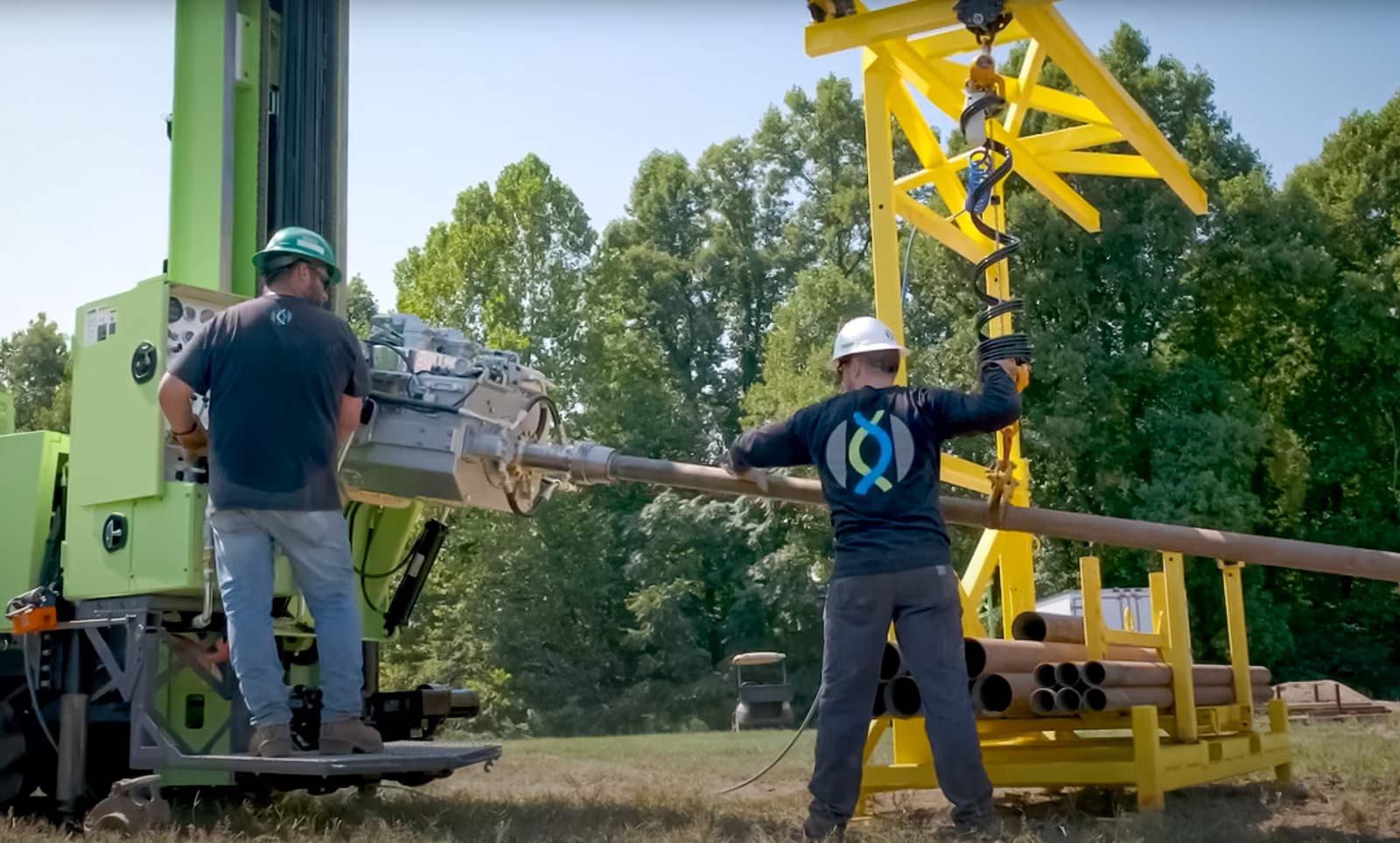

![TUG pipe handling for sonic drill rig in action](https://www.terrasonicinternational.com/wp-content/uploads/2020/08/tug-system-in-action-1-1024x616.jpg)

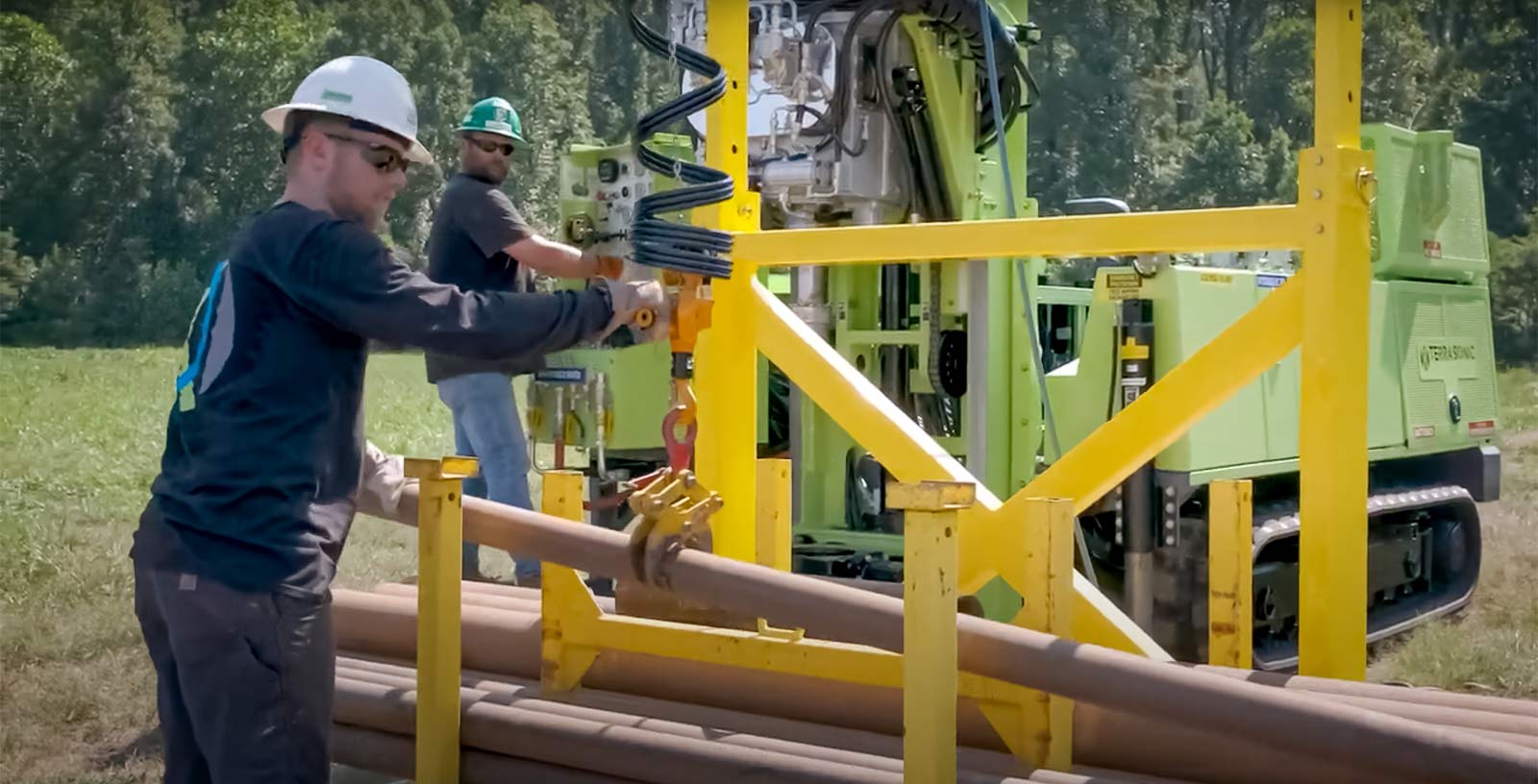

![TUG pipe handling for sonic drill rig loading pipe claw](https://www.terrasonicinternational.com/wp-content/uploads/2020/08/tug-system-in-action-2-1024x522.jpg)

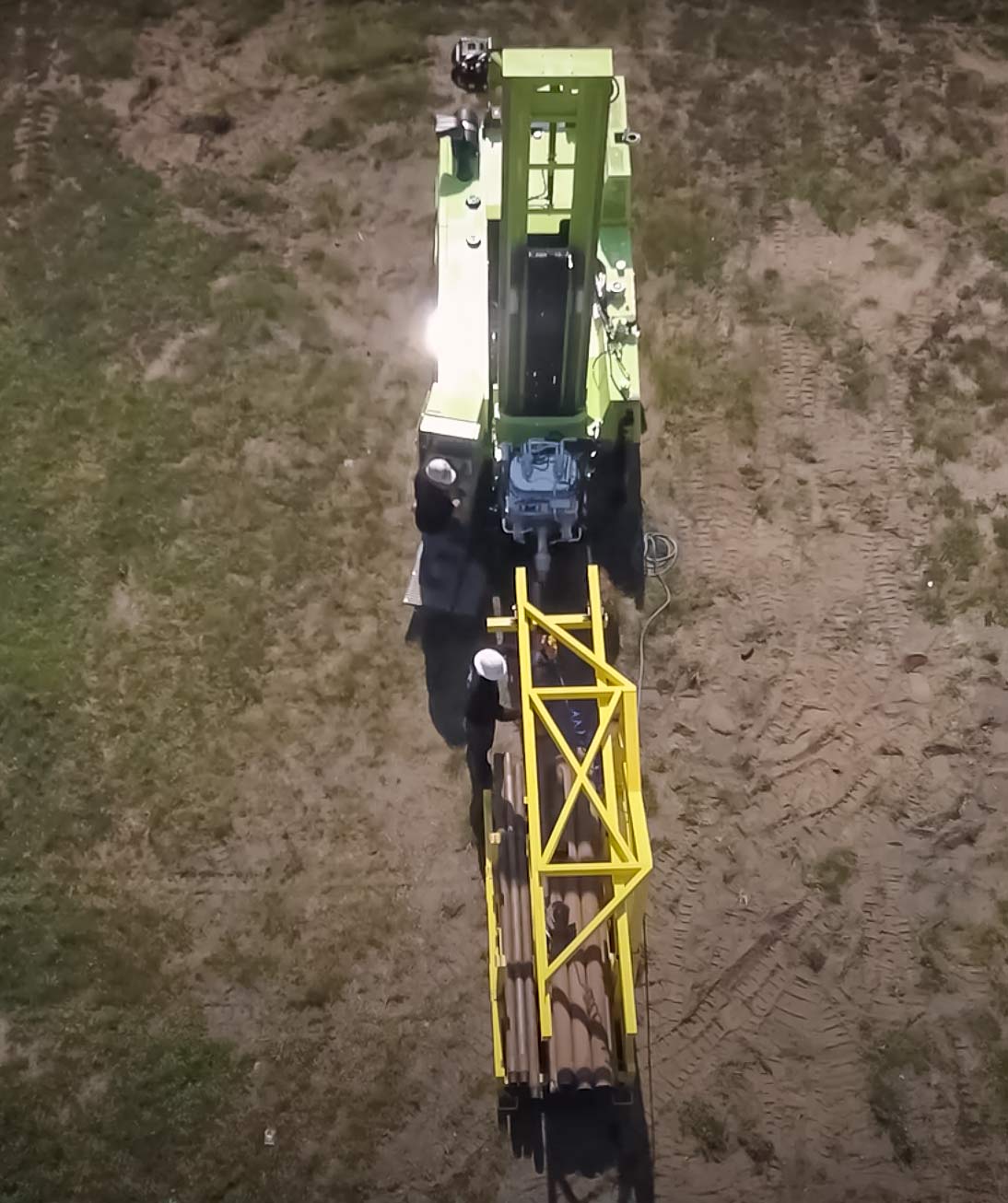

![arial view of TUG pipe handling for sonic drill rig in action](https://www.terrasonicinternational.com/wp-content/uploads/2020/08/tug-system-in-action-3-858x1024.jpg)

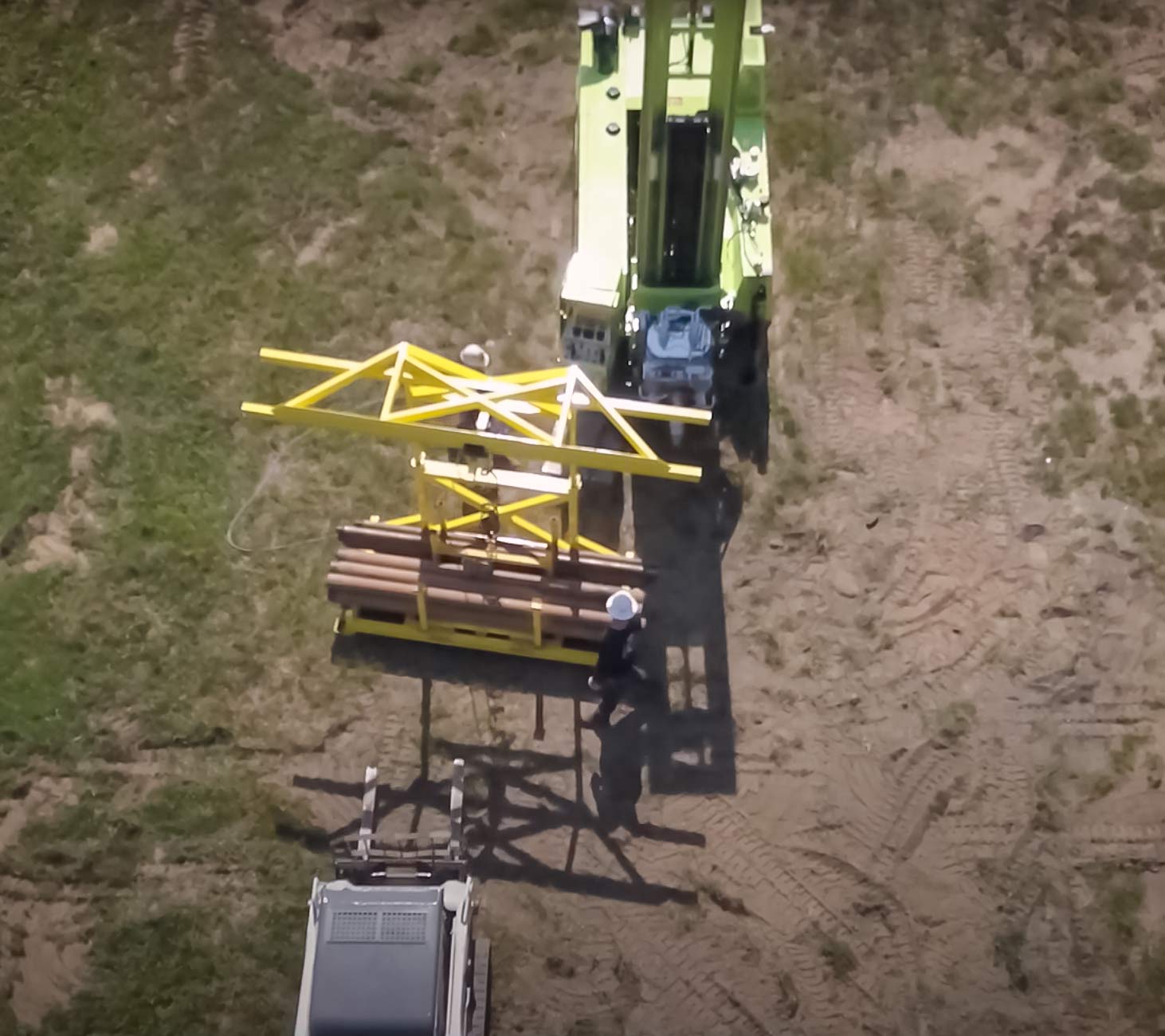

![arial view of TUG pipe handling for sonic drill rig](https://www.terrasonicinternational.com/wp-content/uploads/2020/08/tug-system-in-action-4-1024x911.jpg)

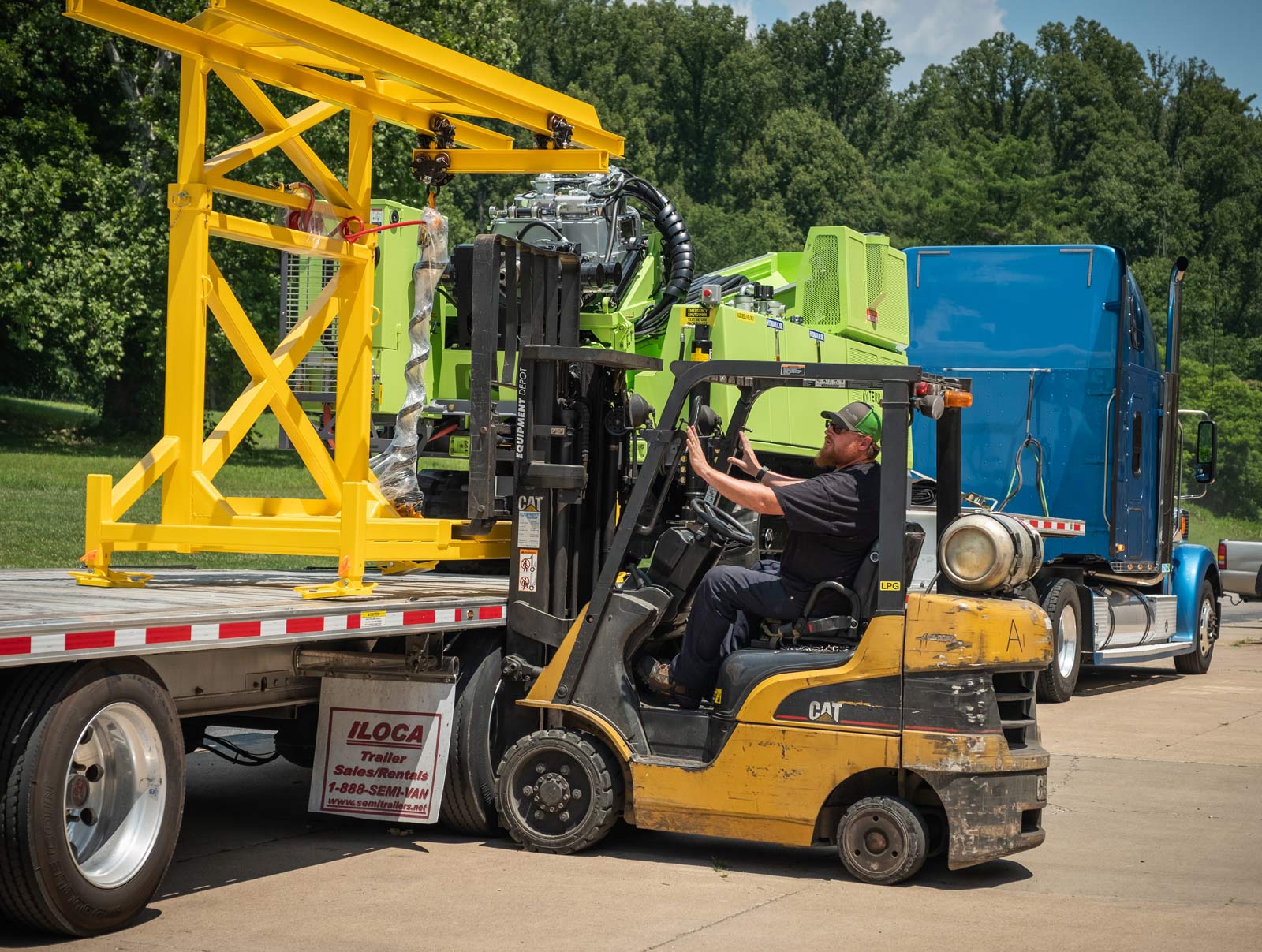

![loading TUG pipe handling for sonic drill rig](https://www.terrasonicinternational.com/wp-content/uploads/2020/08/tug-system-loading-1-1024x772.jpg)

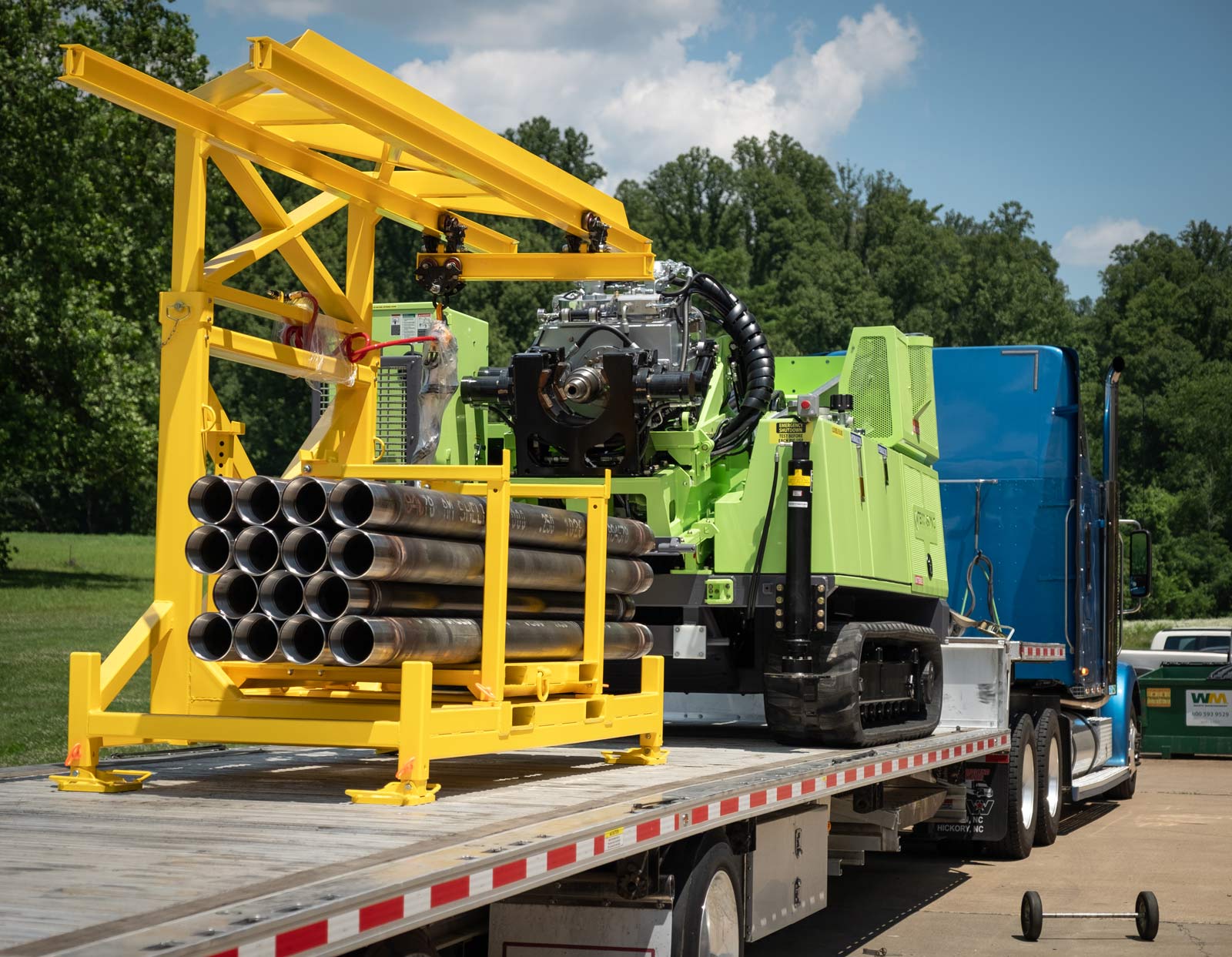

![TUG pipe handling for sonic drill rig for transport](https://www.terrasonicinternational.com/wp-content/uploads/2020/08/tug-system-loading-2-1024x796.jpg)

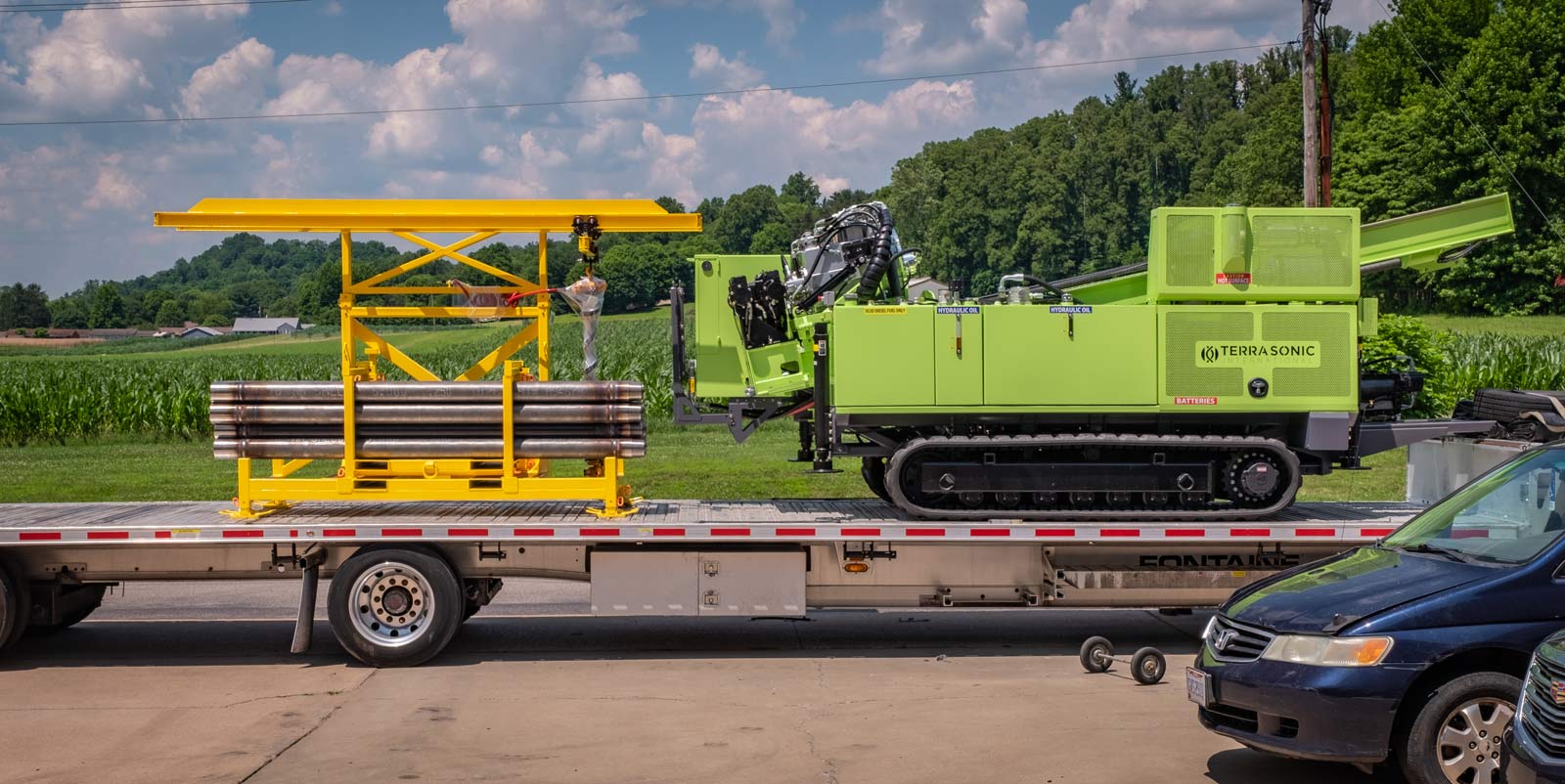

![TUG pipe handling for sonic drill rig ready for shipment with TSi 150CC rig](https://www.terrasonicinternational.com/wp-content/uploads/2020/08/tug-system-loading-3-1024x513.jpg)
